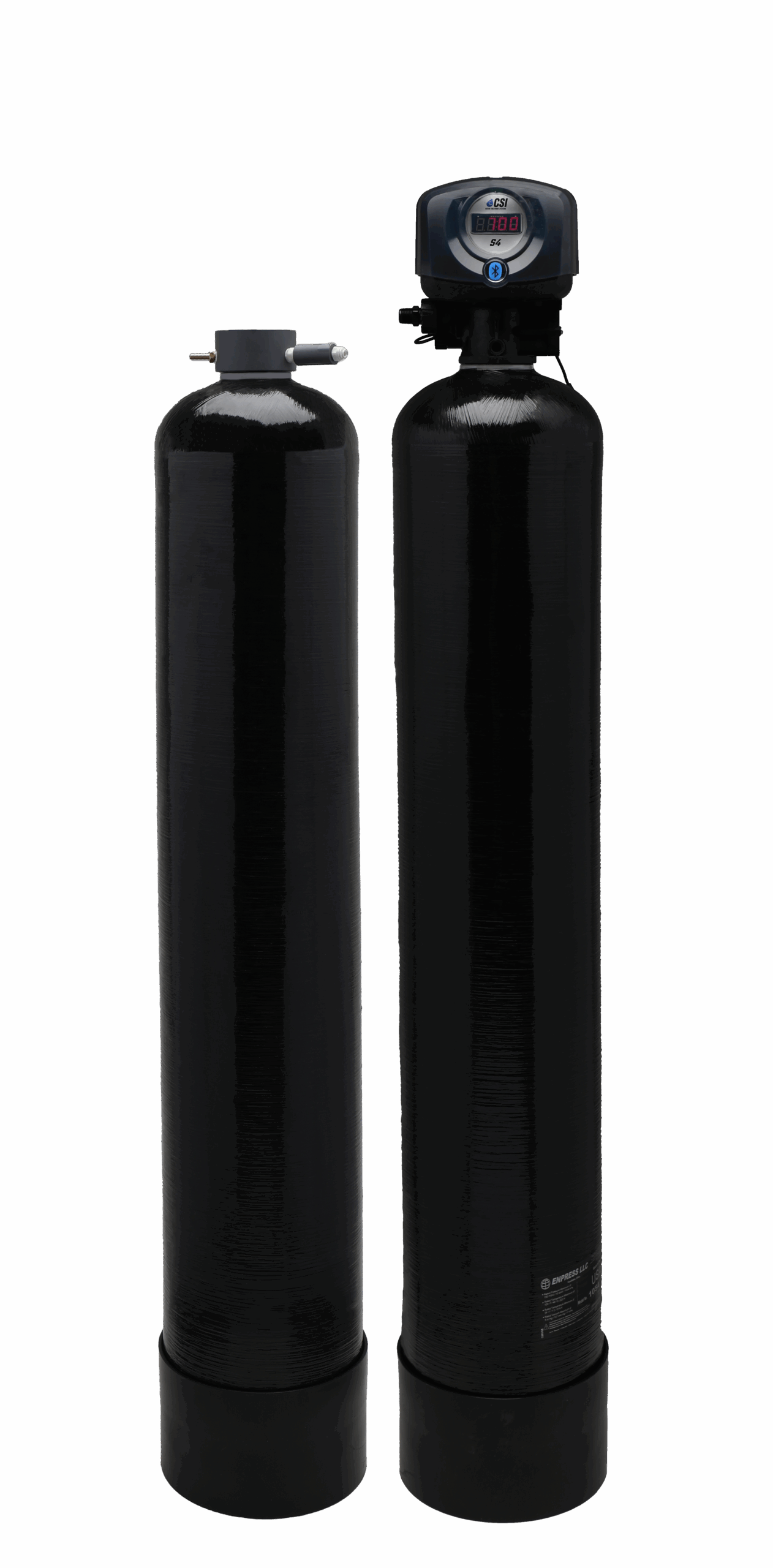

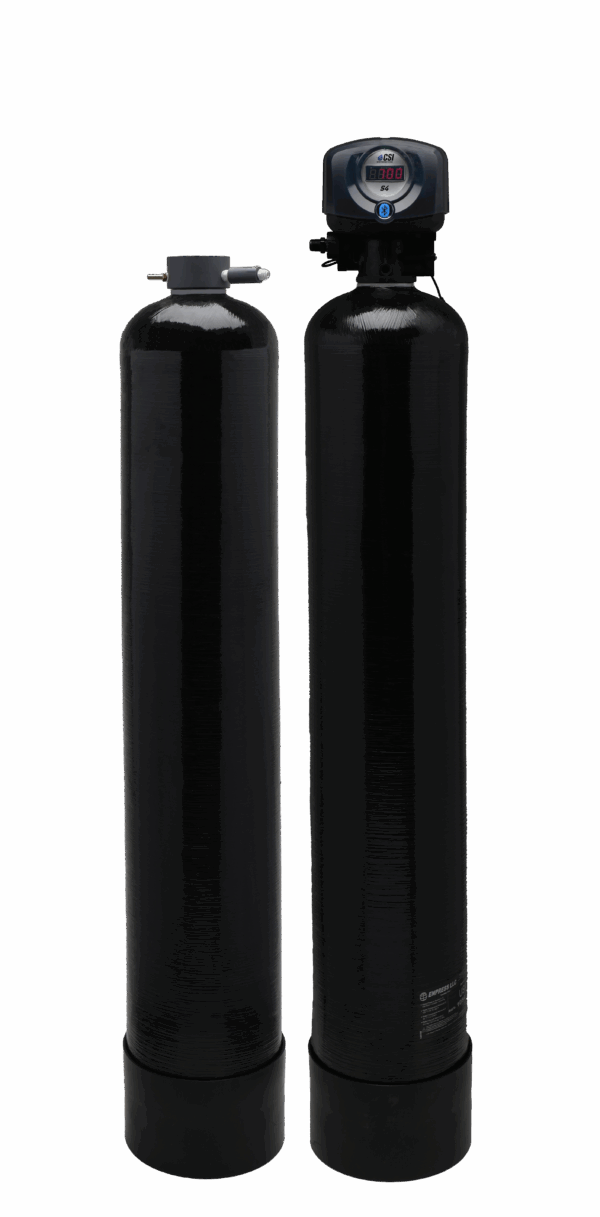

REACTR VS™ Filter

  • Signature 3 Control Valve
  • Legacy View Bluetooth enabled control valve for advanced diagnostics and simplified setup
  • Simple 9-volt battery back-up keeps electronic meter active and will motor control valve to shut off position if in regeneration during power failure
  • On-demand meter providing data and history

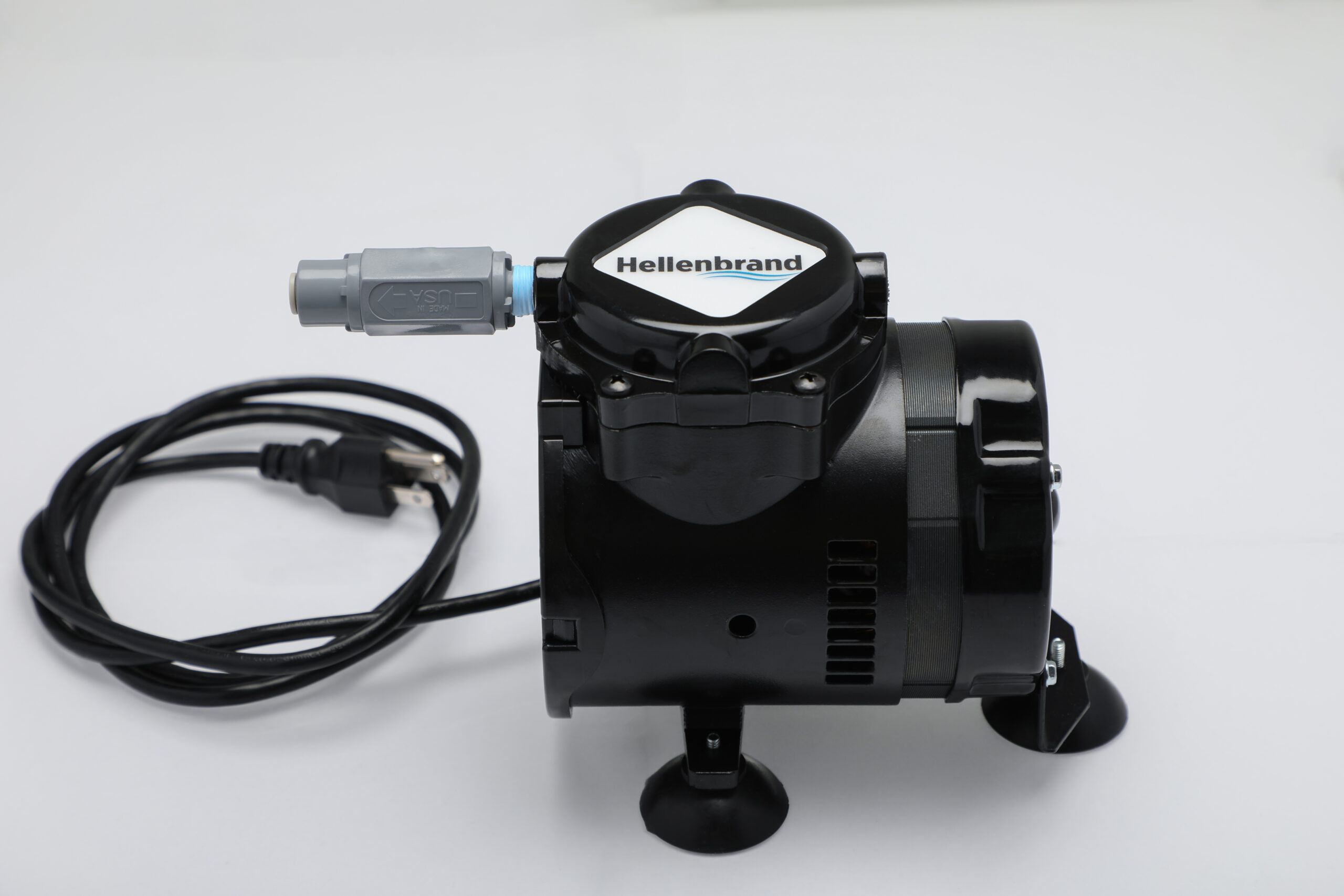

  • Quiet, high output, oil less air compressor for maximum aeration
  • Adjustable Cycle Times
  • High backwash flow capability
  • Proprietary two valve bypass with 1” MNPT Connections
  • Weather / Insect Resistant One-Piece Slide Cover
  • Features Enpress ® Vortech™ distributor plate
Back to Products

Filter Media Capacity (cu. ft.)  1.5 / 2.0 / 2.5 / 3.0

Service Flow Rate (maximum capacity) 7 / 8 / 10 / 11

Backwash Flow Rate 5.0 / 6.0 / 7.0 / 7.0

Space Required 10 X 10 X 62 / 10 X 12 X 62 / 10 X 10 X 62 / 16 X 16 X 73

Approximate Shipping Weight 175 / 246 / 280 / 321

CSI Reactr VS – Sales Sheet

CSI Aeration Filtration Brochure

Signature 3 Reactr VS Valve, Installation and Operation
